FGLair™ app SET UP - STEP4: Pairing USB: RC type 2 - Manual connection
1

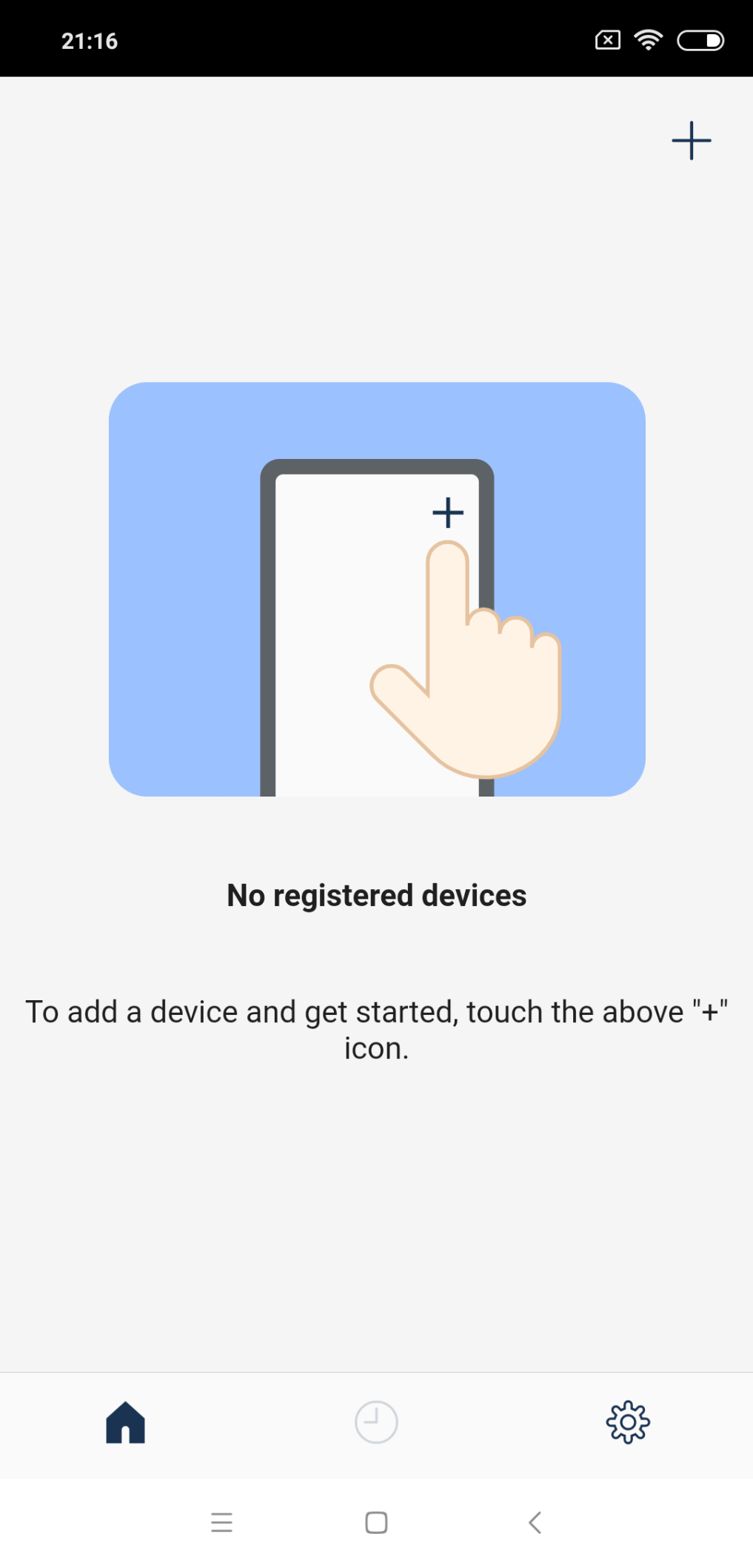

Tap [＋] to add a new air conditioner.
2

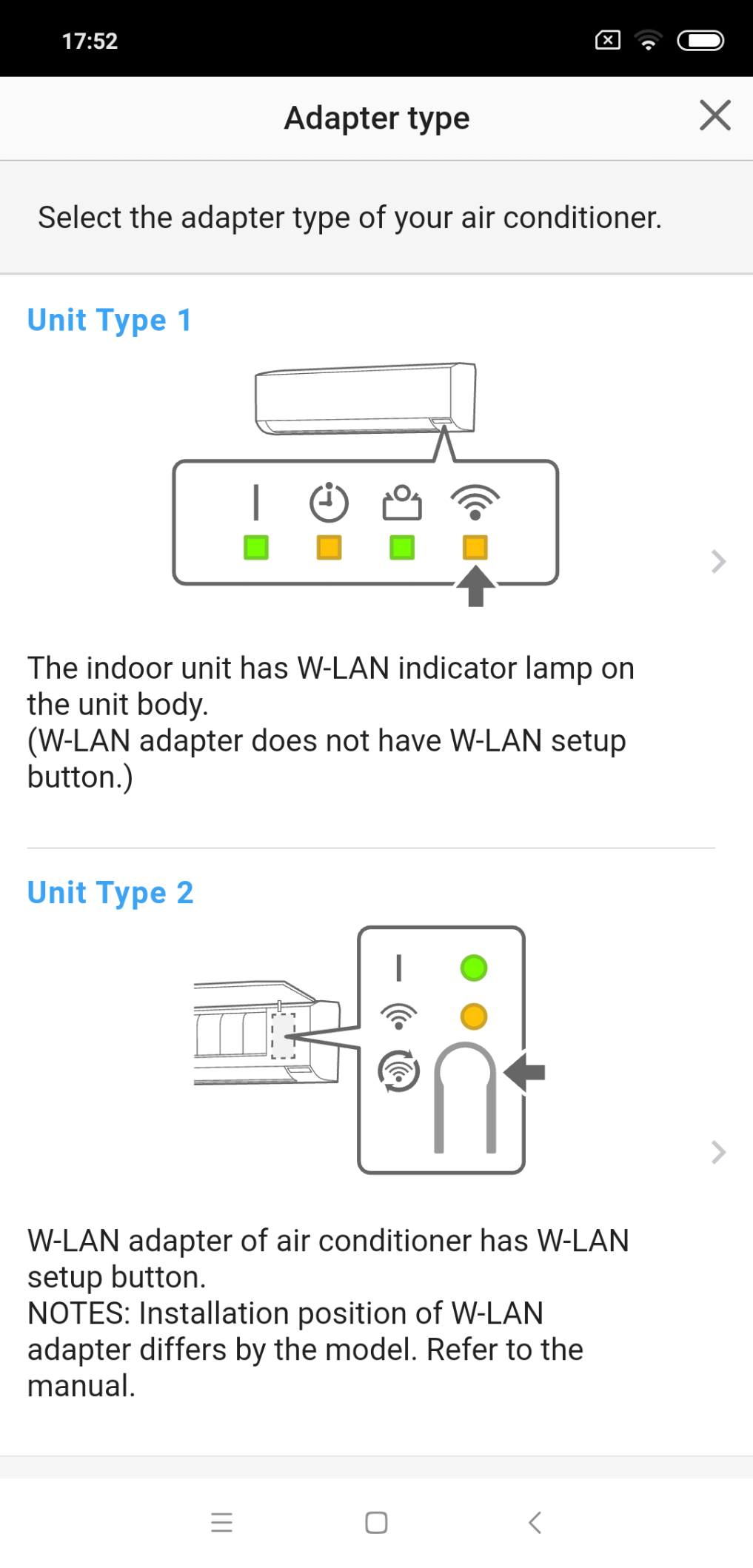

Select the adapter type of your air conditioner.
3

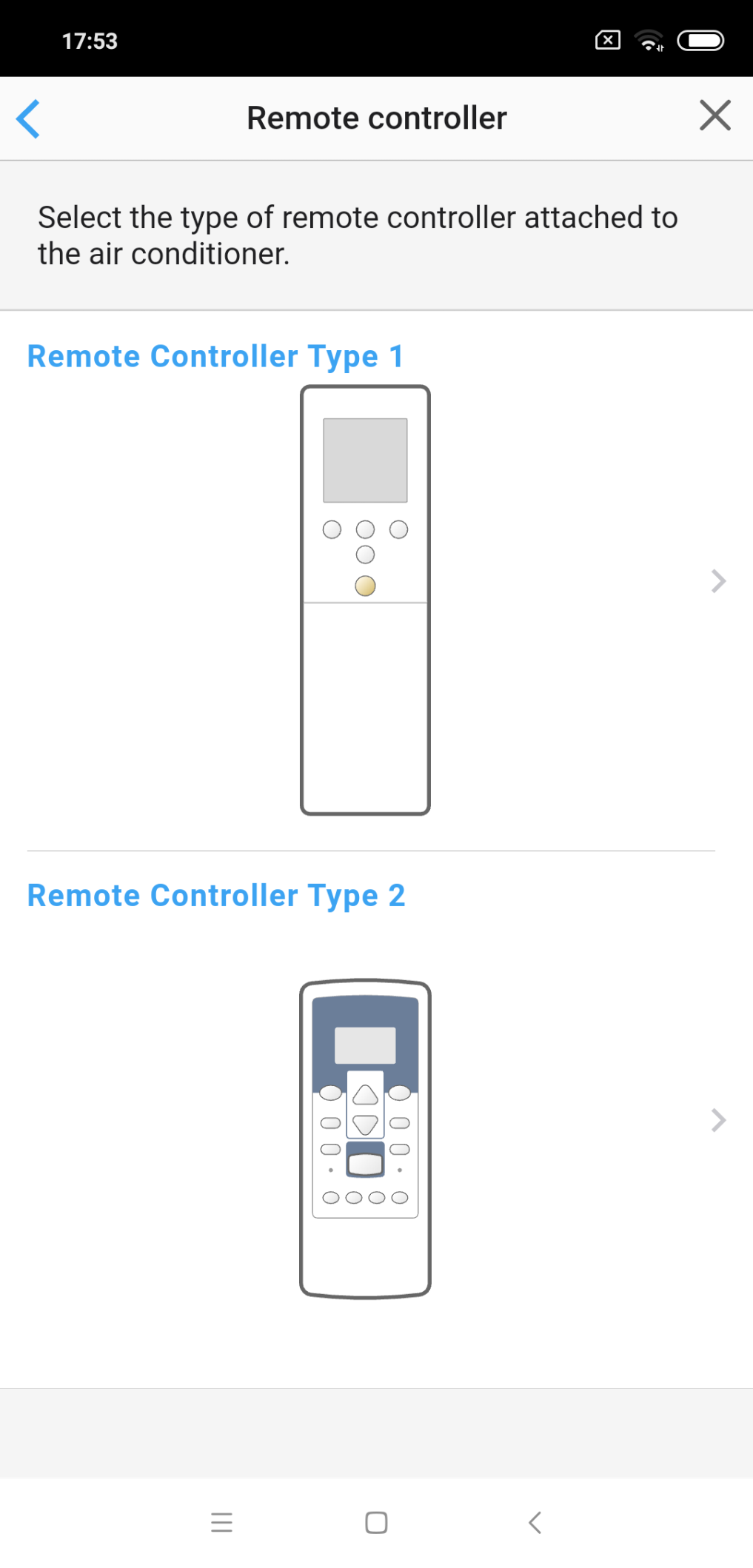

Select a [Remote Controller Type2].
4

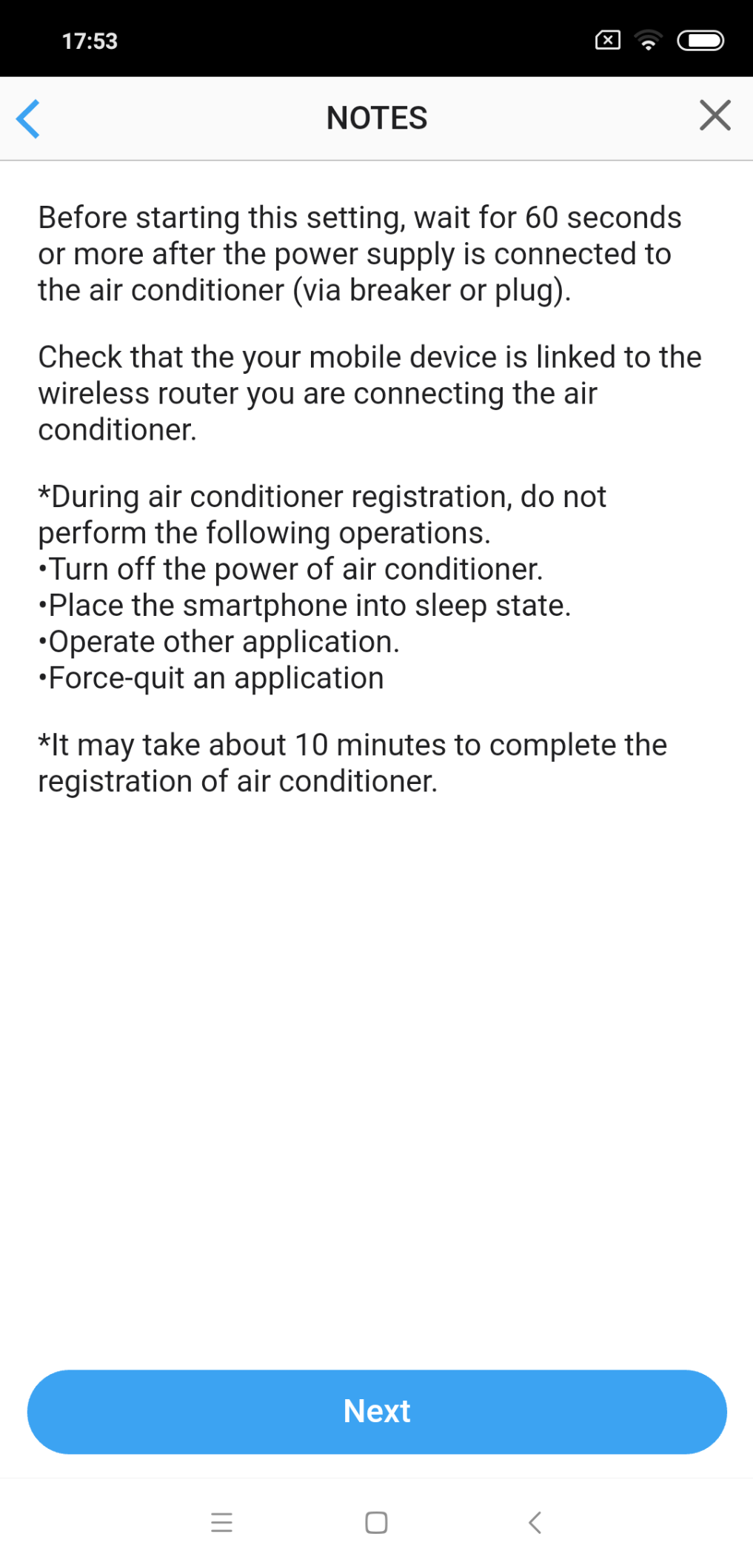

Read the note and tap [Next].
5

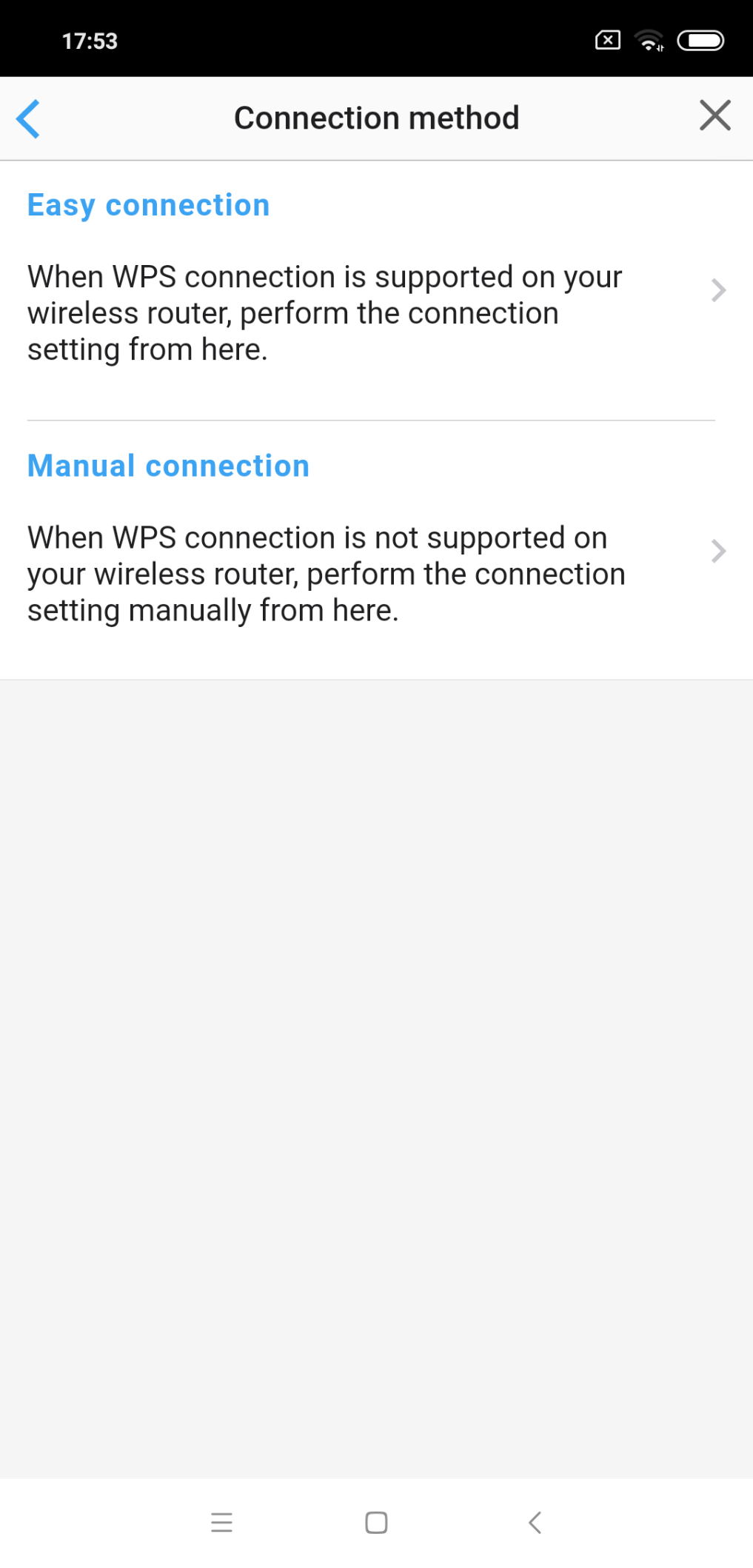

Select a [Manual connection].
6 * Remote controller shown is a representative model.
【RC type 2】

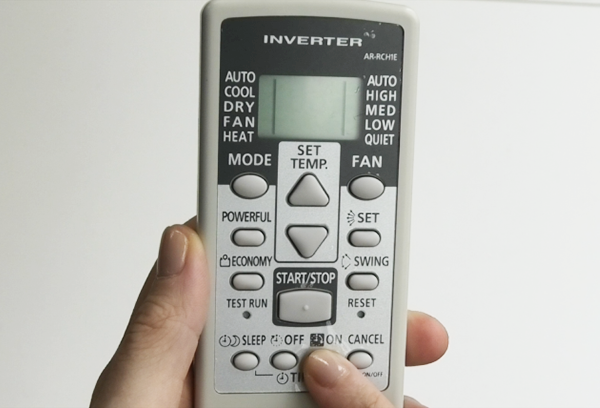

Press down [TIMER ON] on the remote controller for more than 5 seconds.
7
【RC type 2】

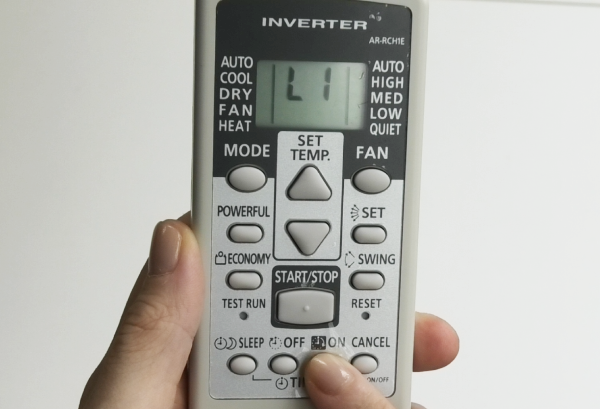

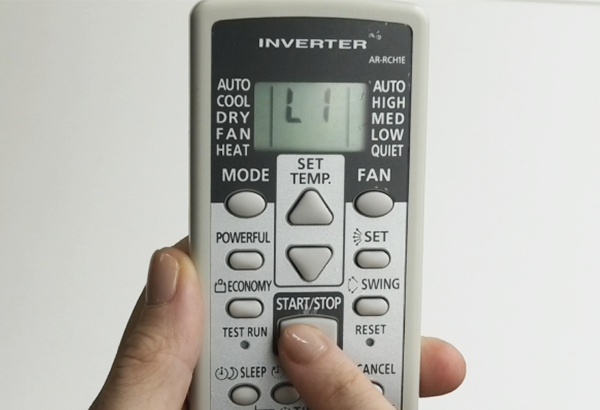

[L1] will be displayed on the remote controller display.
8
Press [START/STOP].
9

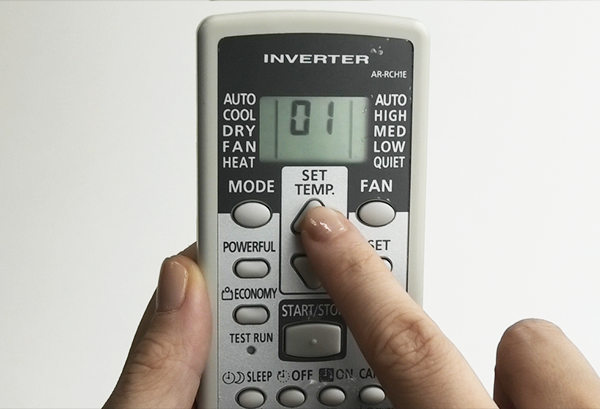

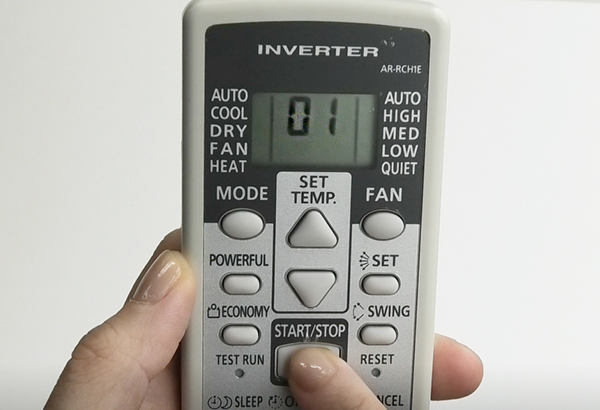

Select [01] using
.
10
Press [START/STOP].
11

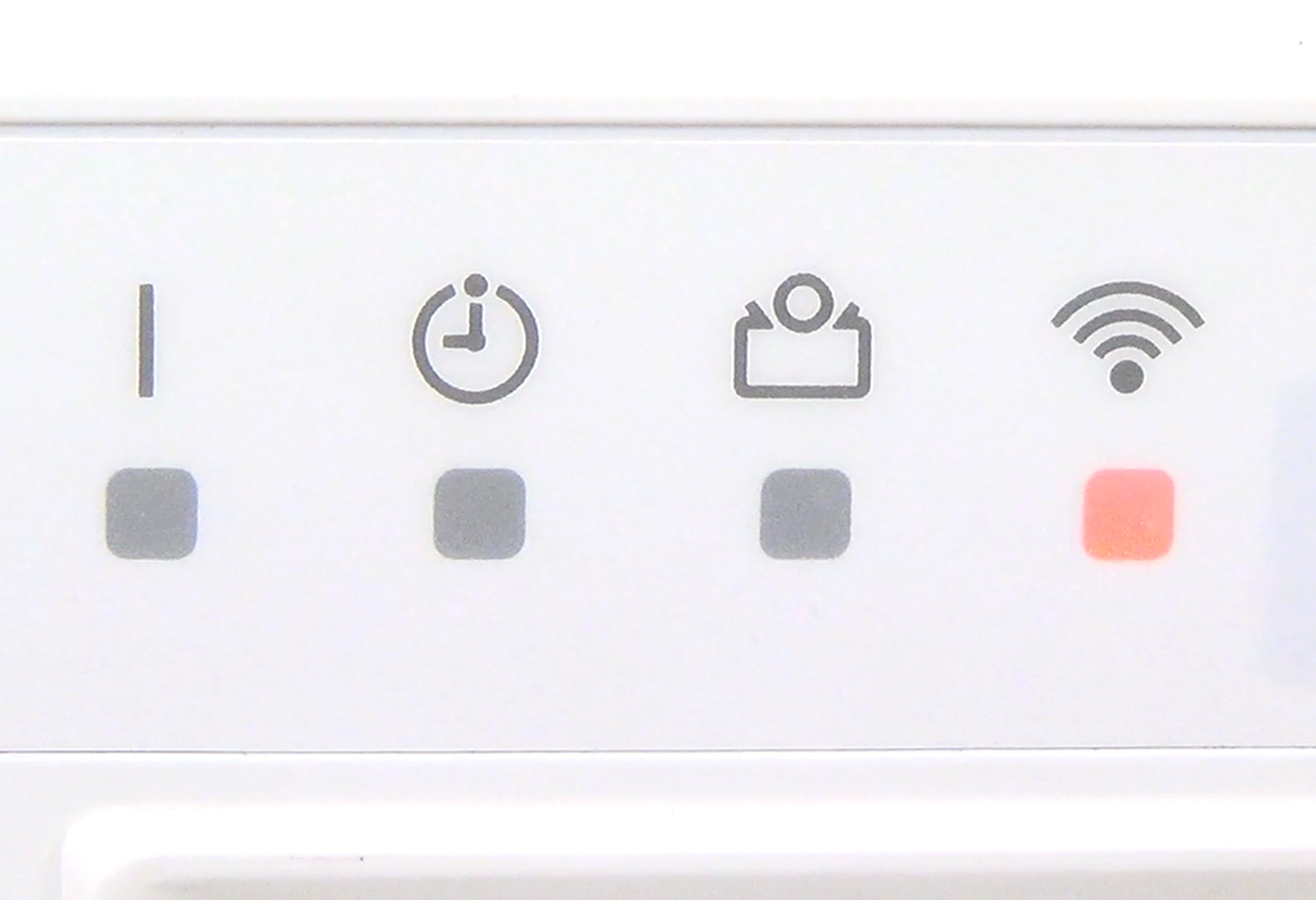

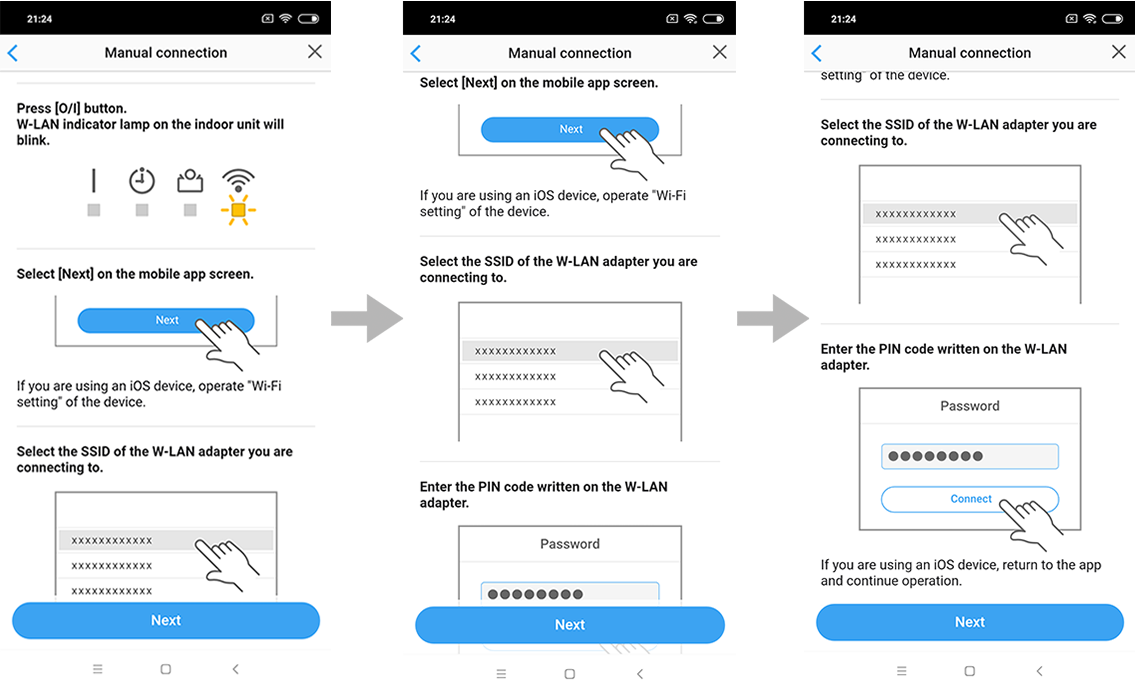

W-LAN indicator lamp on the indoor unit will blink.
12
Select [Next] on the mobile app screen.
Page scroll

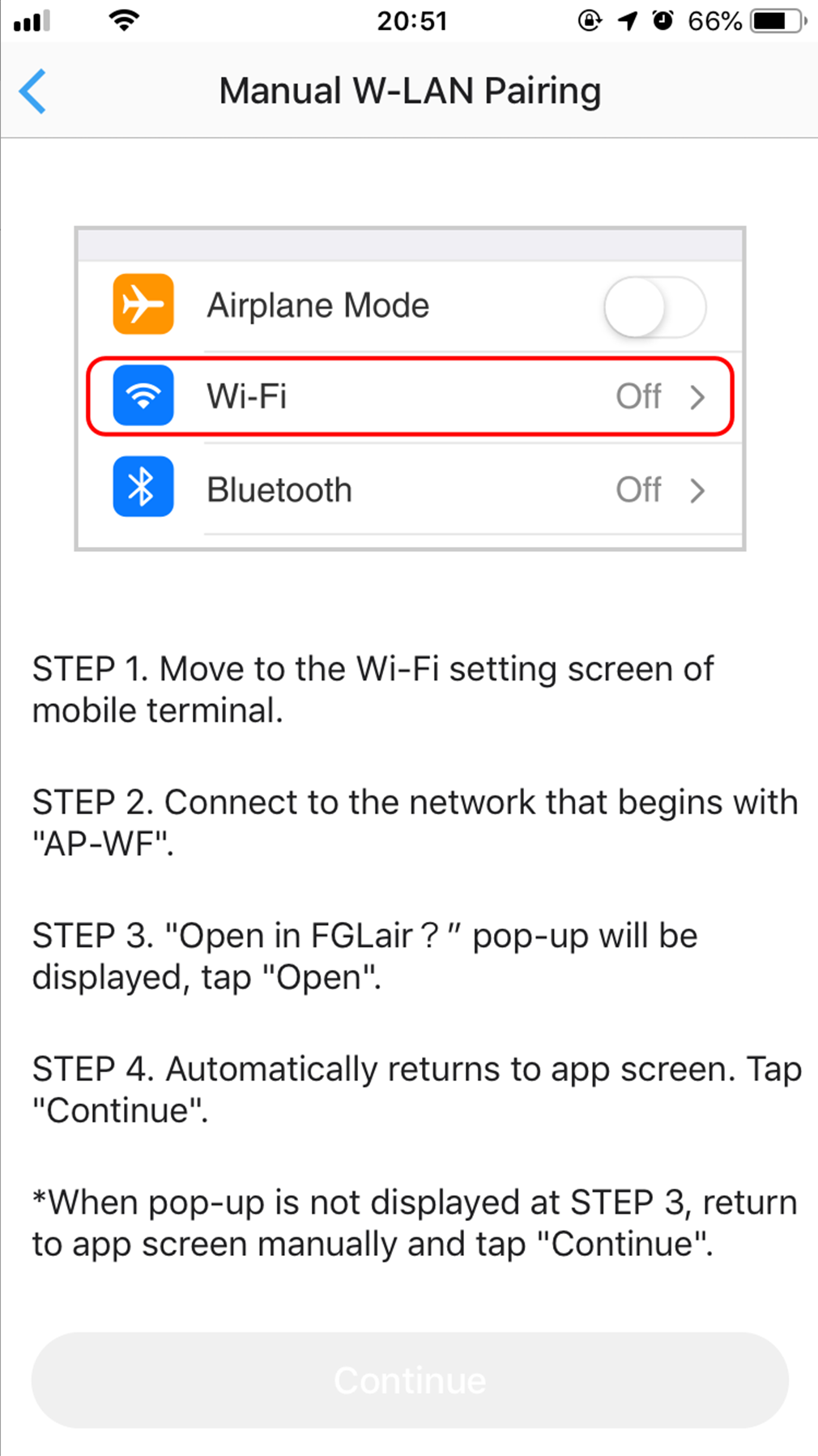

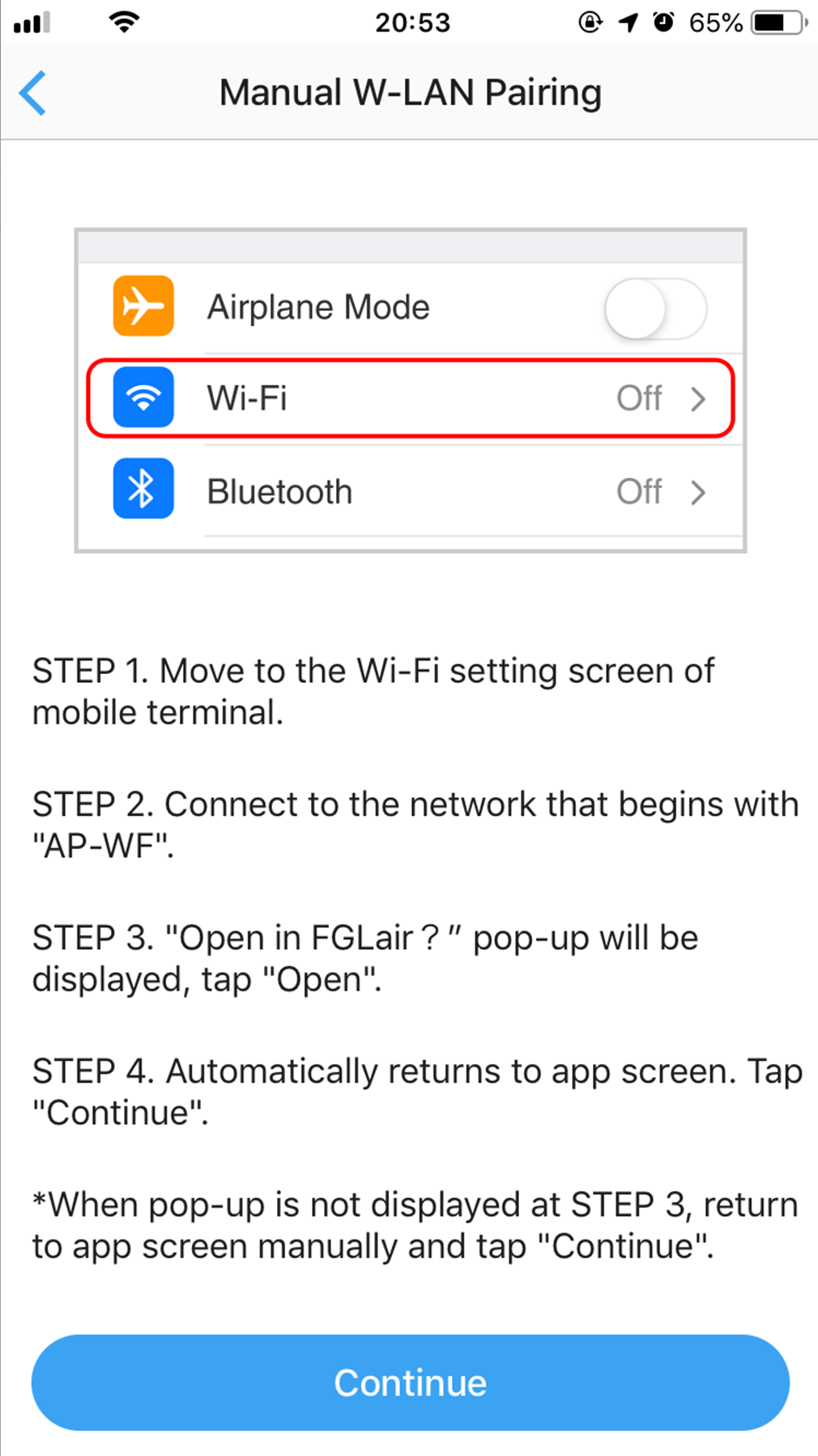

Open [Setting] -> W-LAN by following the instructions on the mobile app.
Select the SSID of the air conditioner you are connecting to.

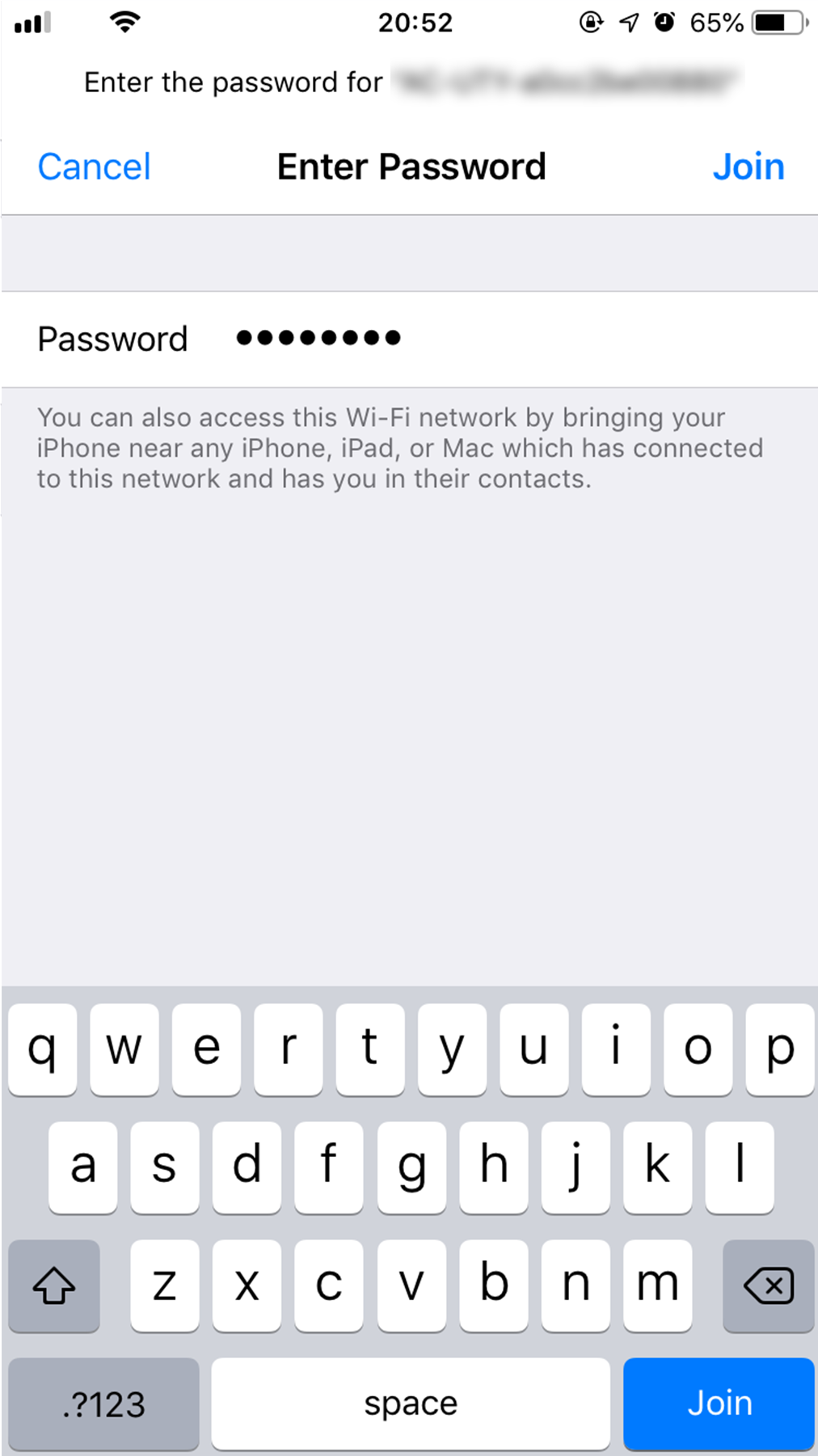

Enter the PIN code written on the W-LAN adapter then press [Join].
Depending on the type of W-LAN adapter, you may not need to enter a password.

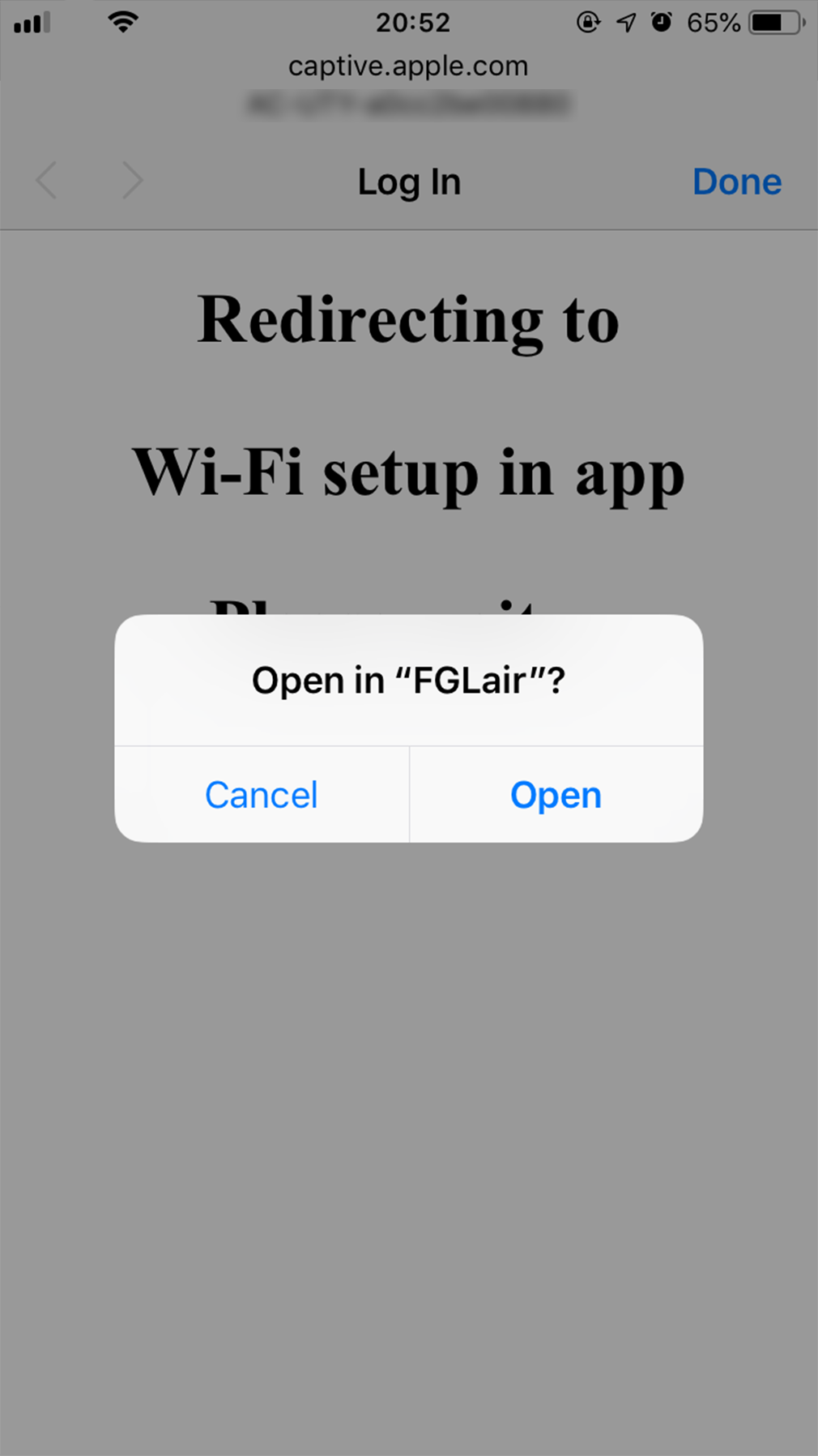

"Open in FGLair?" pop-up will be displayed, tap [Open].
When pop-up is not displayed, return to app screen manually.
Tap [Continue].
Select the SSID of the W-LAN adapter you are connecting to.
For iOS, it is necessary to select the SSID of the adapter on the terminal's W-LAN setting screen.
Enter the PIN code written on the W-LAN adapter then press [Connect].
Depending on the type of W-LAN adapter, you may not need to enter a PIN code.
13
Select the SSID of the W-LAN adapter you are connecting to.
For iOS, it is necessary to select the SSID of the adapter on the terminal's W-LAN setting screen.
14

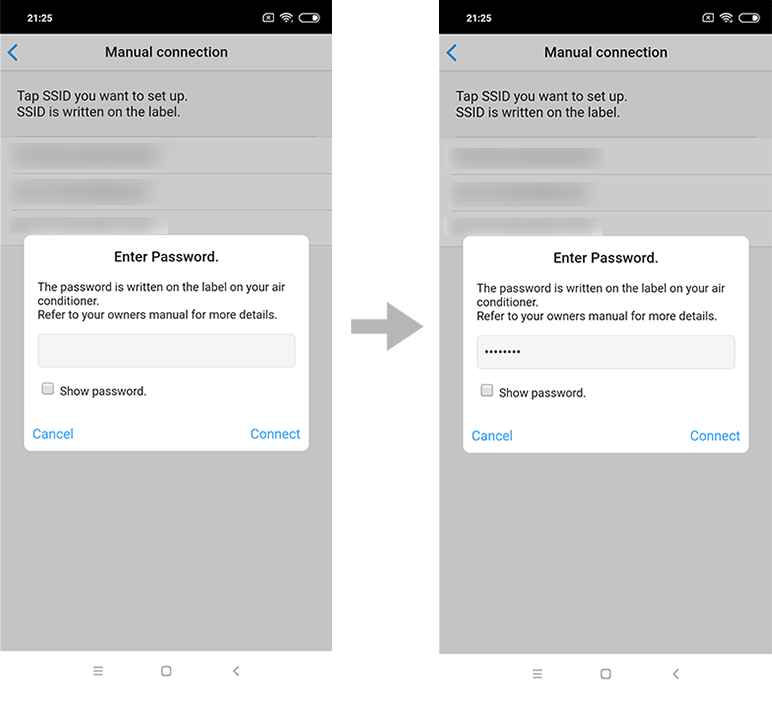

Enter the PIN code written on the W-LAN adapter then press [Connect].
Depending on the type of W-LAN adapter, you may not need to enter a PIN code.
15
Select [Next] on the mobile app screen.
Page scroll
16

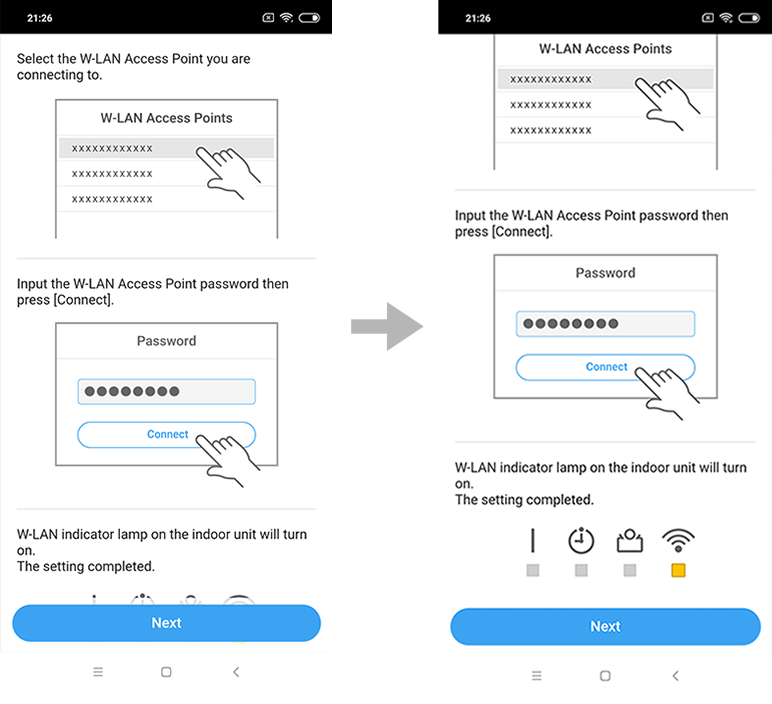

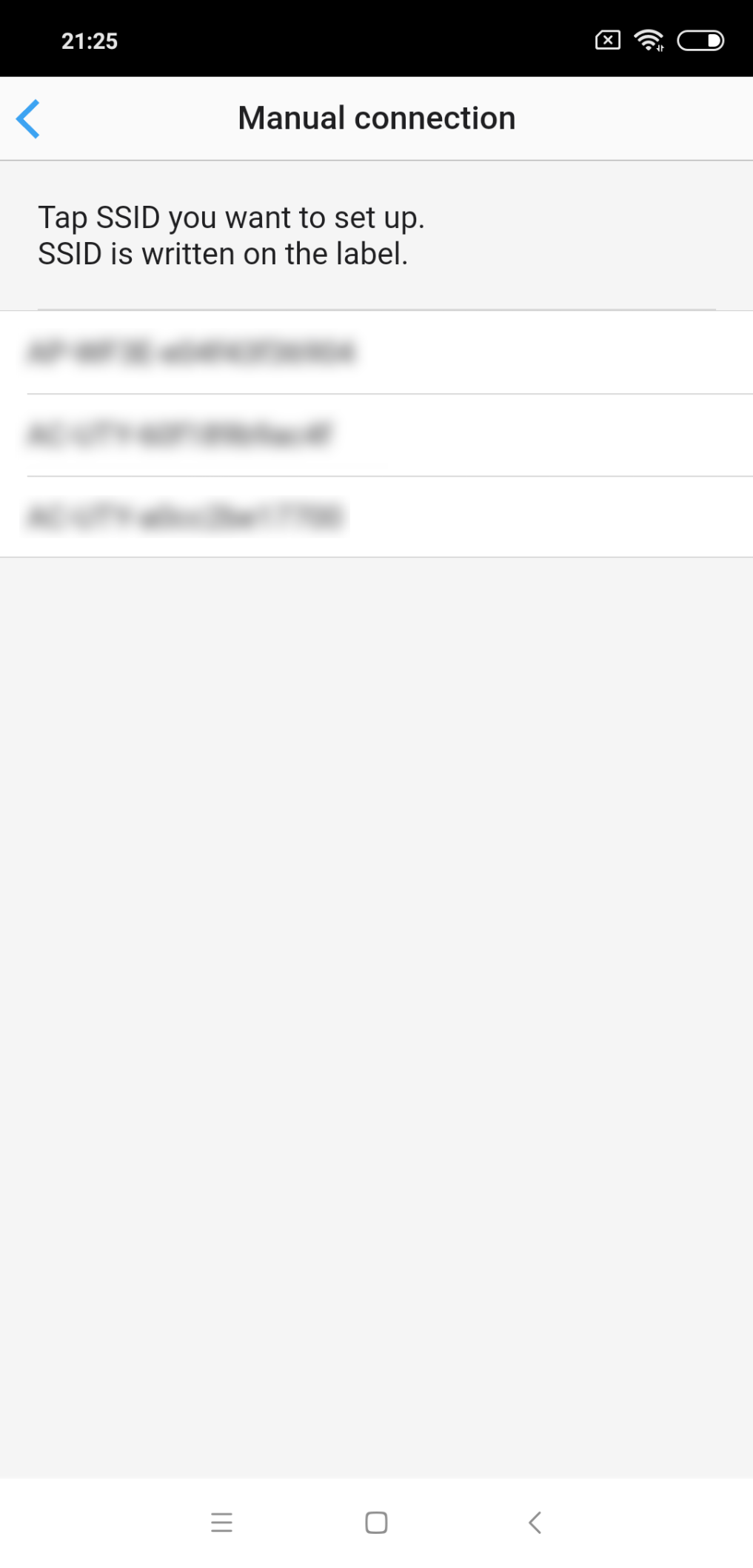

Select the W-LAN Access Point you are connecting to.
17

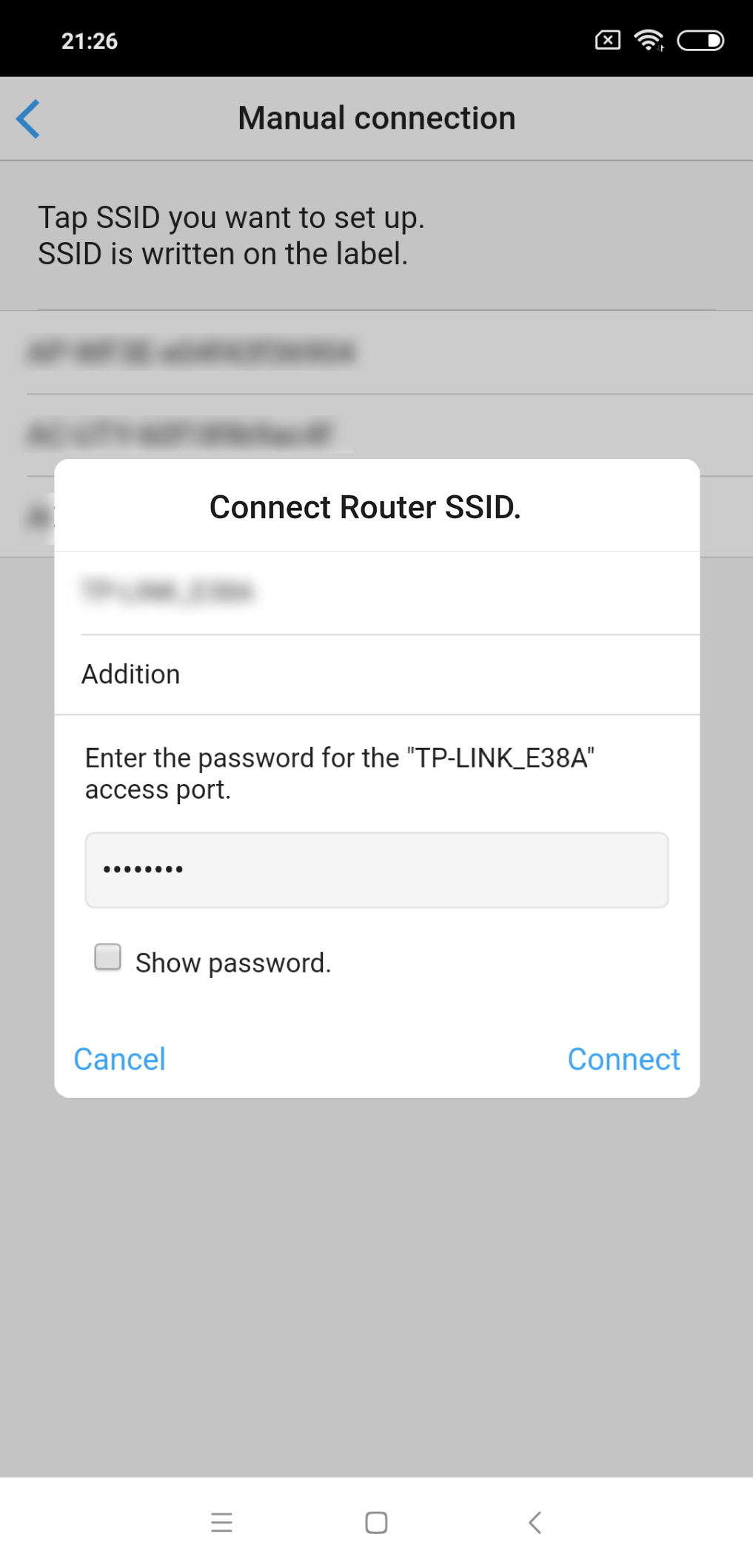

Enter the W-LAN Access Point password then press [Connect].
18

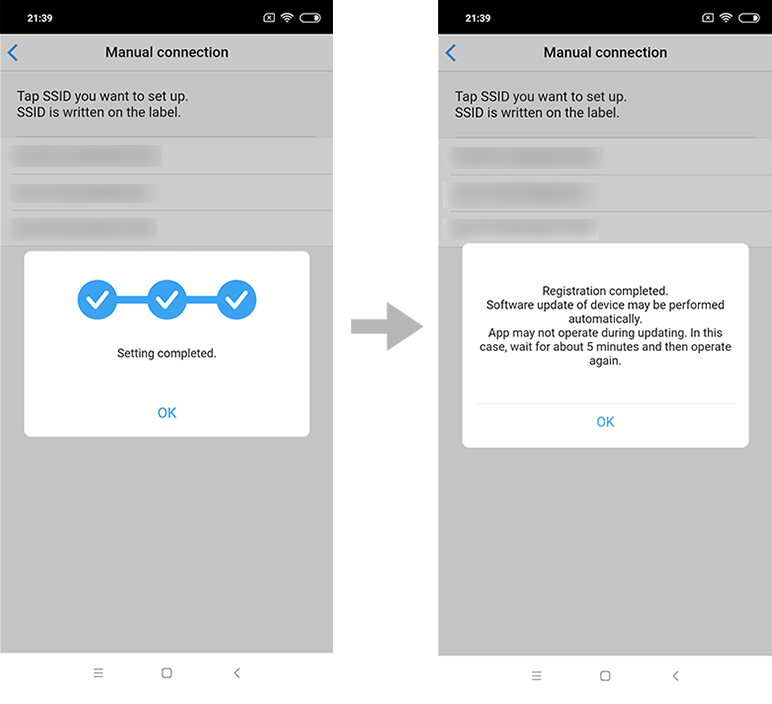

on the indoor unit will turn on.The setting is completed.
- *
- The time to complete the setting is different depending on the communication environment.
- *
- It takes max 15 minutes to complete the setting.
- *
- "FGLair" is a trademark of FUJITSU GENERAL LIMITED.
- *
- The company names and brand names referred to in this page are themselves the trademarks, registered trademarks, and products of the respective companies.
- *
- Screens, figures and movies are only for explanation.
